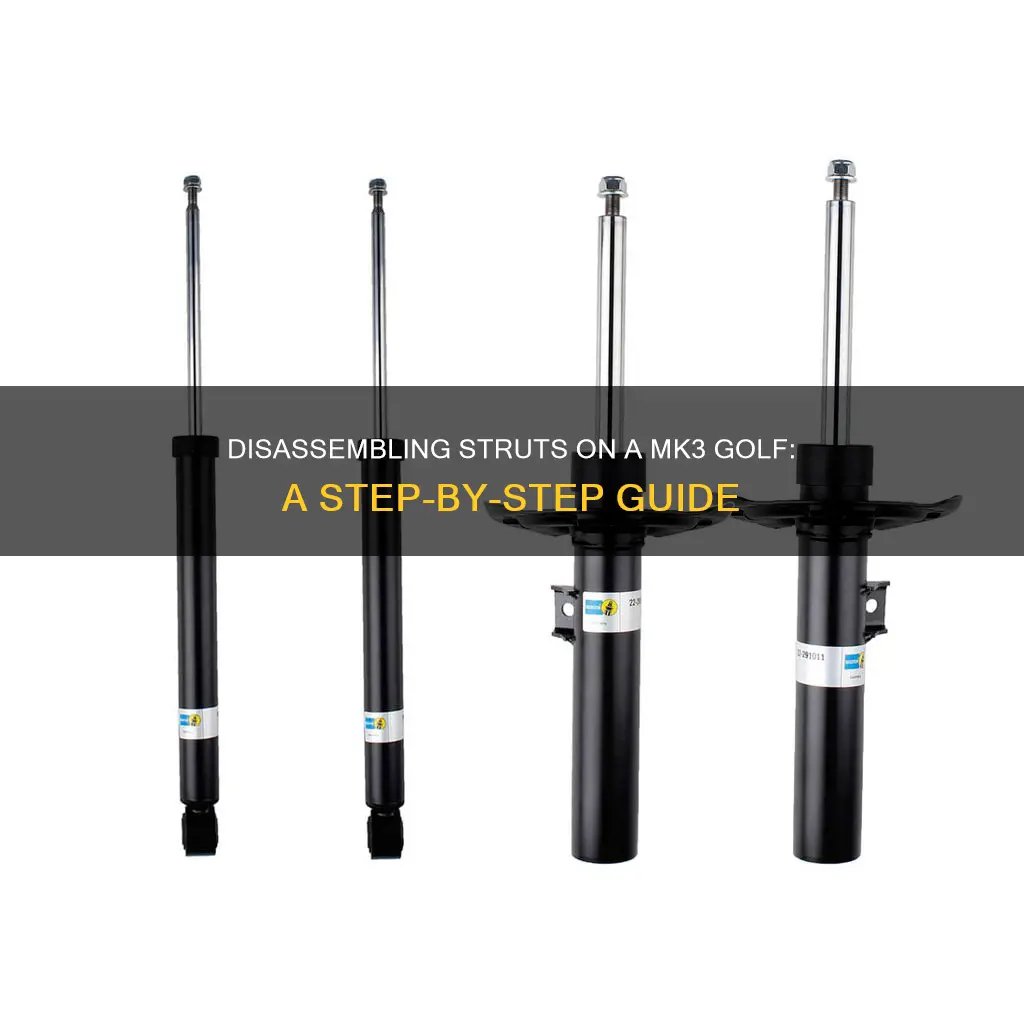

If you're looking to replace the struts on your Volkswagen Golf Mk3, you've come to the right place. This job requires some special tools and a fair bit of elbow grease, but with the right guidance, it can be a rewarding DIY project. The struts are an essential part of your vehicle's suspension system, and when they wear out, you'll notice a decline in ride quality and handling. In this step-by-step guide, we'll cover everything from inspecting your struts to disassembling and replacing them, ensuring your Golf Mk3 drives like new again.
Explore related products
What You'll Learn
Removing the dust shield, clip, and bump stop
To remove the dust shield, clip, and bump stop from the struts of a Volkswagen Golf GTI MK4 (1999-2005 model), follow these steps:
First, jack up the car and remove the front wheels. Disconnect the brake pad wear sensor from the harness, which should be marked with a red arrow. Next, unclip the wire from the holders on the strut, marked with a yellow arrow. Leave the brake line attached to the caliper and hard line, but remove the rubber flexible line from the holder on the strut, as indicated by the red and yellow arrows, respectively.
Now, use a 16mm socket to remove the bolt connecting the sway bar link to the lower control arm, as shown by the red arrow in Figure 3. There should be an 18mm nut and bolt "pinching" the strut into the top of the housing. Use two wrenches or sockets to remove this nut, then slide the bolt out from the housing. With the bolt removed, spray the area between the strut and housing with penetrating oil. You can use a special tool made by Volkswagen, or a 3/8 to 1/4 step down bit or a 7mm Allen to insert in the lower part of the housing and turn to spread it open.
With the car safely supported, push the suspension down until the strut releases from the housing. Now, you can remove the dust shield/boot, clip, and bump stop, marked with red, green, and yellow arrows, respectively. If you are using factory replacement struts, check these components for damage and replace them if needed. If they are still in good condition, you can transfer them to the new strut.
Remember, the installation of the new strut is just the reverse of this removal process. Don't forget to replace the hardware with new single-use nuts and bolts.
Golf GTE: Still Available?
You may want to see also
Explore related products
Disconnecting the brake pad wear sensor
Firstly, locate the brake pad wear sensor. It is usually attached to the harness and clipped to the strut via a wire. This wire needs to be carefully unclipped from the holders on the strut. Make sure you are only dealing with the brake pad wear sensor and not the ABS sensor, as they are two separate components. It is important not to cut the ABS sensor wire.
Once you have identified the correct sensor, you can begin the disconnection process. You will need to detach the sensor from the harness. This may involve unclipping or unscrewing the sensor, depending on your specific model. Be cautious when handling the sensor to avoid causing any damage. If the sensor or its connector is corroded, proceed with extra care as corrosion can make the process more challenging.
After detaching the sensor from the harness, you will need to address the wiring. Cut and splice the wire that leads to the brake pad. This step ensures that the circuit is complete, preventing the warning light from illuminating. You can use various methods to splice the wires, such as soldering or crimp fittings. Ensure that you are only splicing the wire connected to the brake pad and not any other components.
Before reconnecting the sensor, it is essential to clean and inspect the contact points. Use a suitable cleaning agent to remove any dirt or corrosion buildup. Verify that the sensor itself is not damaged and is functioning correctly. If the sensor is faulty, you may need to replace it with a new one.
Finally, when you are ready to reassemble the struts, reconnect the brake pad wear sensor by plugging it back into the harness. Ensure that the wire is securely clipped to the holders on the strut. Test the sensor to ensure it is functioning properly and that there are no warning lights illuminated on your dashboard.
By following these steps, you can successfully disconnect and reconnect the brake pad wear sensor when disassembling and reassembling the struts on your Mk3 Golf. Remember to work carefully and consult a professional mechanic if you encounter any issues or complications during the process.
