Golf carts were invented in 1962 by Merlin L. Halvorson to allow golfers a more relaxing way to get around the course. They require regular maintenance and repair, and sometimes it becomes necessary to pull off the golf cart wheel hub. This process may require some mechanical knowledge and tools, and if you are not confident in your abilities, it is recommended to seek professional assistance. To pull off the wheel hub, you will need to first find level ground and park your golf cart on a firm, flat surface to prevent the jack from tipping. Engage the parking brake and power off the vehicle. Next, locate the manufacturer's recommended jacking point on the cart frame, usually near the wheel hub, and position the jack. Once the cart is lifted, you can begin the process of removing the wheel hub. This may involve removing the brake drum, as the hub is often held in place by bolts inside the assembly. You may also need to use a puller tool and apply heat to the hub to loosen it. Finally, inspect the wheel for any wobble or movement and test-drive the cart at a low speed to confirm safe operation and proper wheel alignment.
Explore related products
What You'll Learn
Removing the wheel and castle nut
To remove the wheel and castle nut of a golf cart, you will need a few tools. These include a flathead screwdriver or plastic trim removal tool, a socket wrench or adjustable wrench, and a rubber mallet.
Begin by locating the centre cap, which is usually found covering the nut or bolt holding the wheel in place. Gently pry off the centre cap using the flathead screwdriver or plastic trim removal tool. Once removed, you should be able to see the nut or bolt that secures the wheel to the steering column.
Loosen the nut or bolt with the socket wrench or adjustable wrench by turning it counterclockwise. Some golf carts may have a left-hand thread, so ensure you turn it in the correct direction. If the nut or bolt is stuck, you may need to use penetrating oil.
After removing the nut or bolt, carefully pull the wheel off the steering column. This may require some effort, so be patient and avoid using excessive force to prevent any damage.
If you are specifically removing a stuck-on brake drum, there are additional steps to follow. First, remove the cotter key and castle nut, ensuring that the park brake is fully off. If there is a ridge on the drum from wear, locate the adjuster and turn the adjuster star wheel to release/decrease brake expansion. This will allow more play for the drum to slip over the worn ridge. Spray the spline liberally with a good penetrating oil, and then hit the drum with a heavy hammer multiple times on the face edge. This should send a good vibration to release the drum from the axle. If it is still not releasing, the next step is to heat the drum at the hub until it is almost red hot and then hammer it off.
Golf Club Measurement: The Ultimate Guide to Perfect Play
You may want to see also
Explore related products
Using a jack to lift the cart
Lifting a golf cart with a jack requires careful preparation and attention to safety. Before you begin, ensure you have the right equipment and that you understand how to use it. Check the weight of the golf cart and make sure your jack can support it. Different golf carts have unique jack points, so always consult your cart's manual to prevent damage and ensure safe lifting.
Once you have the right equipment, prepare your work area. Choose a flat, stable location, such as concrete or a solid driveway, to prevent the jack from slipping or becoming unstable. Gather all the tools you need, including the jack, jack stands, wheel chocks, gloves, goggles, and any other safety gear.
Now you're ready to start lifting the golf cart. First, engage the parking brake and ensure the wheels are locked in place with wheel chocks to prevent the cart from rolling. Then, locate a sturdy part of the golf cart's frame where the jack can be safely positioned. Place the jack under the frame, following the manufacturer's instructions to find the correct jacking point.
With the jack in position, slowly pump the handle to raise the golf cart to the desired height. Keep a close eye on the cart's stability as you lift it. Once you've reached the desired height, place jack stands under the frame for added support. Lower the cart onto the jack stands and ensure it is stable and secure before removing your hands.
Now that the golf cart is securely lifted, you can perform maintenance or repairs. When you're finished, carefully remove the jack stands and lower the golf cart back down using the jack. Remember to take your time and prioritize safety throughout the process to avoid accidents or injuries.
Golf's Resurgence: Is the Sport Making a Comeback?
You may want to see also
Explore related products
Removing the brake drum
The brake drum of a golf cart can get stuck due to rusting or general wear and tear. A ridge can form over the outer portion of the rotor due to continuous start and stop, which can cause the drum to get wearied and stuck.
Before attempting to remove the brake drum, it is important to check if the hub is frozen in place and to try removing it first. The hub is held in place by bolts that are inside the assembly, so it cannot be removed without removing the brake drum.
To remove the brake drum, you can try the following methods:

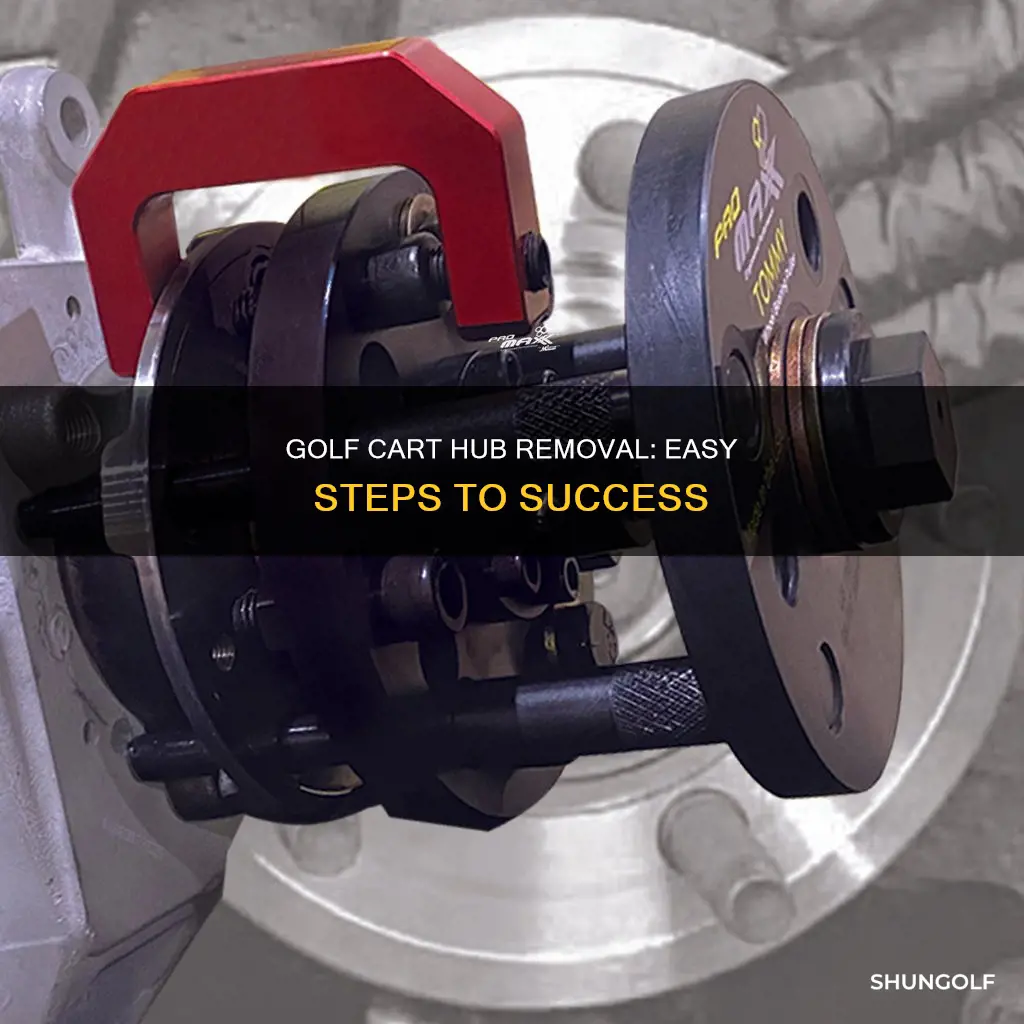

- Use a puller: Take a puller and fit its central bolt into the central dented area of the drum’s hub. Then, fix the arms of the puller along the outer edge of the drum and keep tightening until the central drum comes off.
- Use an impact wrench or a breaker bar with a cheater pipe: An impact wrench can be used to loosen the drum before jacking up the wheel. A breaker bar with a cheater pipe can also be used when the tire is on the ground and the parking brake is set.
- Hammer the drum: First, remove the cotter pin and castle nut. Back the brake lining off with an adjuster. Tap the drum with a hammer a few times and it should pull off.
- Heat and hammer: If the drum is still not releasing, heat the drum at the hub until it is almost red hot and then hammer it off.
- Cut the drum: If the above methods do not work, you may need to cut the drum off. This can be done with an angle grinder or a cutting wheel. Cut two slots in the drum hub perpendicular to each other, almost to the axle spline. Then, with a heavy hammer and cold chisel, place the chisel in the cut slot and hit solidly, rotating to the other cut slot and repeating.
It is important to note that some of these methods may damage the axle or other components of the golf cart. It is recommended to keep a fire extinguisher handy in case of fire and to work on the brakes only after the cart has cooled down to avoid burns.
Golf Le Fleru 2: Restovk – A Refined Upgrade
You may want to see also
Explore related products
Using a hammer to beat the back of the tire
To pull off a golf cart hub, you need to remove the wheel and the castle nut. Spray the cart with PB Blaster and let it soak for 15-30 minutes. Do not put the castle nut back on, but put the wheel and lugs back on. With the cart still lifted on one side, use a hammer to beat the back of the tire several times until it comes loose.
Beating the back of the tire with a hammer is just one of many methods to pull off a golf cart hub. Other methods include using a puller, a hub puller with a slide hammer, a torch, a grinder, and a regular hammer.
If you are still unable to remove the hub, you can try heating the drum at the hub until it is almost red-hot and then hammering it off. If it still does not budge, use an angle grinder to cut two slots in the drum hub perpendicular to each other, almost reaching the axle spline. Then, use a heavy hammer and cold chisel to place the chisel in the cut slot and hit it solidly. Rotate to the other cut slot in the drum hub and repeat. This will cause the hub to crack and spread from the axle spline, allowing you to remove it.
It is important to note that removing a golf cart hub can be challenging, and specialized tools may be required. Taking the cart to a local tire shop or a small engine repair joint is always an option if you are unable to remove the hub yourself.
Golfing with Am Fam: A Fun-Filled Day
You may want to see also
Explore related products
Applying heat with a gun
First, park your golf cart on a flat, level surface and engage the parking brake to ensure safety and stability during the process. Then, elevate the golf cart using a jack or lift. It is important to ensure that the cart is secure and stable during this step.
Next, you will need to remove the wheel and the castle nut. This will grant you access to the hub and the necessary space to work on it. Once the wheel is removed, spray the area with a penetrating oil like PB Blaster and let it soak for around 15-30 minutes.
Now, you can begin applying heat to the hub using an electric heat gun. Focus the heat on the areas where the hub and axle meet, as this is often the point of welding or freezing. Keep the heat applied and use a puller to apply pressure and attempt to remove the hub. The heat will help expand the metal, loosening the connection and allowing the hub to be pulled off.
If the hub is particularly stubborn, you can continue to apply heat while using a heavy hammer to strike the back of the tire or hub. This combination of heat and force should help loosen the connection and allow for the hub to be removed.
It is important to exercise caution when using a heat gun, as the metal components can become very hot. Always allow time for the metal to cool down before handling extensively and be sure to wear appropriate safety gear, including gloves and eye protection.
Golf Attire: Chinos, a Good Choice?
You may want to see also
Frequently asked questions
First, make sure your golf cart is on a flat surface, the ignition is turned off, and the parking brake is engaged. Then, elevate the golf cart with a jack or lift. Next, remove the wheel by using a lug wrench to loosen the lug nuts and pulling the wheel straight off the hub.
This depends on the model of your golf cart. If your golf cart has a two-piece brake drum/hub assembly, you can simply slide the brake drum off the hub once the wheel has been removed. If your golf cart has a one-piece hub, you will need to use 90-degree snap ring pliers to remove the snap ring and then pull out the axle shaft.
You will need a jack or lift to elevate the golf cart, a lug wrench to loosen the lug nuts, and a puller to remove the hub. You may also need a torch, an angle grinder, or an air gun if the hub is particularly stubborn.
The wheel hub assembly connects the wheels to the golf cart's axle and allows for rotational movement. You may need to remove and replace the hub if it is damaged or worn out to improve the performance and handling of your golf cart.
