Harper Lin

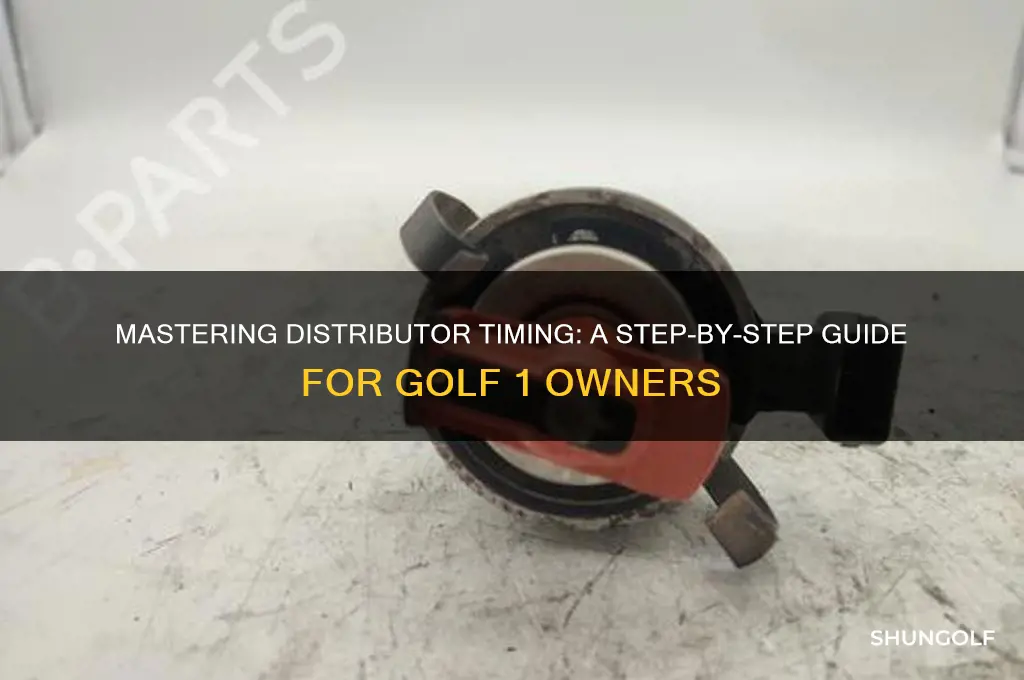

Setting the distributor timing on a Golf 1 is a crucial step in ensuring optimal engine performance and efficiency. This process involves aligning the distributor's rotor with the engine's timing marks to synchronize the ignition system with the combustion cycle. Proper timing ensures that the spark plugs fire at the correct moment, maximizing power output and fuel economy while minimizing emissions. For a Golf 1, equipped with a carbureted or early fuel-injected engine, this task typically requires a timing light, a socket wrench, and a basic understanding of the engine's components. Following the manufacturer's specifications and using the correct tools will help achieve accurate results, keeping the vehicle running smoothly.
Explore related products
What You'll Learn
- Identify Distributor Components: Locate rotor, cap, and ignition coil for timing setup
- Set Engine to TDC: Align timing marks on crankshaft and camshaft
- Adjust Distributor Position: Rotate distributor until rotor points to cylinder 1
- Verify Timing Marks: Use timing light to confirm alignment with manufacturer specs
- Secure Distributor Clamp: Tighten clamp and recheck timing for accuracy
Identify Distributor Components: Locate rotor, cap, and ignition coil for timing setup
To begin setting the distributor timing on a Golf 1, it's crucial to first identify and locate the key components involved in the process. The distributor is a vital part of the ignition system, and understanding its components is essential for accurate timing setup. Start by locating the distributor itself, which is typically found on the top of the engine, often near the firewall. The distributor cap is the first component you'll encounter; it's a plastic cover that protects the internal parts of the distributor and connects to the spark plug wires. Remove the cap by gently lifting or twisting it off to expose the rotor and internal mechanisms.
With the distributor cap removed, you'll immediately see the rotor, a rotating component that distributes high voltage from the ignition coil to the spark plugs via the cap. The rotor is typically a slender, pointed piece made of a conductive material, and it should be in good condition without any cracks or carbon buildup. Inspect the rotor for wear and ensure it's properly seated on the distributor shaft. The rotor's position is critical for timing, as it must be aligned with the correct cylinder when setting the timing. Take note of the rotor's orientation and its relationship to the engine's firing order, which for a Golf 1 is typically 1-3-4-2.
Next, locate the ignition coil, which is responsible for generating the high voltage required to create a spark in the spark plugs. The ignition coil is usually mounted near the distributor, often on the firewall or fender, and is connected to the distributor cap via a high-tension wire. Identify the ignition coil by its cylindrical or rectangular shape and the wires attached to it. Ensure the coil is securely mounted and that all connections are clean and tight. The ignition coil plays a pivotal role in the timing process, as its output must be synchronized with the distributor's rotation to ensure proper engine firing.
As you familiarize yourself with these components, take a moment to clean any dirt or debris from the distributor cap, rotor, and ignition coil connections. Use a clean cloth or compressed air to remove any buildup that could interfere with the ignition system's performance. Inspect the distributor cap for cracks or damage, and replace it if necessary. Similarly, check the spark plug wires for wear or damage, ensuring they are properly connected to both the distributor cap and the spark plugs. This attention to detail will help ensure a reliable and accurate timing setup.
Before proceeding with the timing adjustment, it's essential to understand how these components work together. The distributor shaft rotates, causing the rotor to turn and distribute voltage to the spark plugs in the correct firing order. The ignition coil provides the necessary high voltage, which is then directed by the rotor and cap to the appropriate cylinder. By identifying and understanding the functions of the rotor, cap, and ignition coil, you'll be well-prepared to set the distributor timing accurately on your Golf 1. With these components located and inspected, you can now move on to the next steps in the timing setup process, ensuring a smooth and efficient engine operation.
Masters Leaderboard Update: Who's Leading the Race to Victory?
You may want to see also
Explore related products
Set Engine to TDC: Align timing marks on crankshaft and camshaft
Setting the engine to TDC (Top Dead Center) and aligning the timing marks on the crankshaft and camshaft is a critical step in setting the distributor timing on a Golf 1. Begin by ensuring the engine is cool and the vehicle is in a safe, stationary position. Locate the crankshaft pulley, which is typically at the front of the engine. The crankshaft pulley has a timing mark, often a notch or a line, that needs to be aligned with a fixed mark on the engine block or timing cover. Rotate the crankshaft using a wrench on the crankshaft pulley bolt until the timing mark on the pulley is perfectly aligned with the fixed mark. This position indicates that the piston in cylinder number one is at TDC on the compression stroke.
Next, verify that the camshaft timing marks are also aligned correctly. On the Golf 1, the camshaft timing marks are usually found on the camshaft sprocket and the timing cover. The camshaft sprocket will have a mark (often a dot or a line) that must align with a corresponding mark on the timing cover. If the marks are not aligned, adjust the camshaft position by rotating the crankshaft one full turn (360 degrees) and recheck the alignment. This ensures that both the crankshaft and camshaft are synchronized, which is essential for proper valve timing.
With the crankshaft and camshaft timing marks aligned, double-check that the engine is indeed at TDC on cylinder one. You can confirm this by inserting a thin screwdriver or a TDC tool into the spark plug hole of cylinder one. If the tool can be inserted and the piston is at the top of its travel, the engine is correctly at TDC. If not, rotate the crankshaft another full turn and recheck the alignment of the timing marks.
Once TDC is confirmed and the timing marks are aligned, secure the crankshaft in position using a wrench to prevent it from moving. This step is crucial to ensure the timing does not shift during the distributor installation process. If the crankshaft moves, the timing will be incorrect, leading to potential engine damage or poor performance.
Finally, with the engine set to TDC and the timing marks aligned, you are ready to proceed with setting the distributor timing. Ensure all tools and components are clear of moving parts before starting the engine. Proper alignment of the crankshaft and camshaft timing marks is the foundation for accurate distributor timing, so take your time to verify each step before moving forward.
Golf Tee: Does It Really Affect Your Game?
You may want to see also
Explore related products
Adjust Distributor Position: Rotate distributor until rotor points to cylinder 1
To adjust the distributor position on a Golf 1, the first critical step is to ensure the engine is at Top Dead Center (TDC) for cylinder 1. This involves removing the spark plugs and using a wrench to turn the crankshaft pulley clockwise until the timing mark on the pulley aligns with the "0" mark on the timing cover. Once the engine is confirmed to be at TDC for cylinder 1, you can proceed to locate the distributor, which is typically found near the center of the engine bay. The distributor cap should be carefully removed to expose the rotor inside, which is the component responsible for directing high voltage from the ignition coil to the spark plugs in the correct firing order.
With the distributor cap removed, the next step in adjusting the distributor position is to identify the current orientation of the rotor. The rotor should be pointing directly at the terminal for cylinder 1, which is usually marked on the distributor cap or can be identified using the engine's firing order (typically 1-3-4-2 for a Golf 1). If the rotor is not pointing to cylinder 1, you will need to rotate the distributor housing. Before doing this, it is essential to loosen the distributor clamp bolt, usually located at the base of the distributor, to allow for free rotation. Be cautious not to completely remove the bolt, as this can cause the distributor to shift too much and lose its initial timing reference.
Once the distributor clamp bolt is loosened, gently rotate the distributor housing until the rotor points directly at the cylinder 1 terminal. This adjustment should be done smoothly and with precision, as over-rotating or applying excessive force can disrupt the initial timing settings. It is helpful to have a friend or use a small mirror to visually confirm the rotor's position relative to the cylinder 1 terminal while making the adjustment. Ensure that the rotor is aligned as closely as possible, as even a slight misalignment can affect engine performance.
After correctly positioning the rotor to point at cylinder 1, tighten the distributor clamp bolt securely to hold the distributor in place. Be careful not to overtighten, as this can damage the distributor housing or the mounting surface. With the distributor now properly aligned, reattach the distributor cap, ensuring all terminals are correctly seated and the cap is securely fastened. This step is crucial to prevent moisture or debris from entering the distributor, which could lead to misfires or other ignition issues.
Finally, double-check the distributor's position by verifying that the rotor is still pointing to cylinder 1 and that the timing marks on the crankshaft pulley and timing cover remain aligned. If everything is in order, start the engine and listen for any unusual noises or rough idling, which could indicate a need for further adjustments. Properly adjusting the distributor position ensures optimal ignition timing, leading to better engine performance, fuel efficiency, and overall reliability of your Golf 1.
Golfing Fun: AmFam Championship in Madison
You may want to see also
Explore related products
![A-Premium 17PCS Engine Timing Chain Kit W/Tensioner & Guide [SOHC, 6Cyl 4.0L] Compatible with Ford, Mercury, Mazda - Explorer 97-10, Explorer Sport Trac, Ranger 01-10, B4000 01-10, Mountaineer 98-10](https://m.media-amazon.com/images/I/71PR4yc1WAL._AC_UY218_.jpg)
Verify Timing Marks: Use timing light to confirm alignment with manufacturer specs
To verify the timing marks on your Golf 1 using a timing light, start by ensuring the engine is at its normal operating temperature. This is crucial because the timing specifications can vary depending on whether the engine is cold or warm. Once the engine is warmed up, locate the timing marks on the crankshaft pulley and the timing scale on the engine block. These marks are essential reference points for setting the ignition timing. Connect the timing light to the battery and the number one spark plug wire, then start the engine and let it idle. Shine the timing light at the timing marks while the engine is running to observe the alignment.
With the timing light in place, observe the position of the timing mark on the crankshaft pulley relative to the timing scale. The mark should align with the specified degree mark on the scale, typically indicated in the vehicle’s service manual. For most Golf 1 models, the timing is set between 5° and 7° before top dead center (BTDC) at idle speed. If the mark is not aligned correctly, adjust the distributor by loosening the distributor clamp bolt and rotating the distributor housing slightly. Be cautious not to disturb the distributor cap’s orientation relative to the engine block during this process.
After making adjustments, recheck the timing marks using the timing light to ensure they align with the manufacturer’s specifications. If the timing is still off, repeat the adjustment process until the mark is correctly positioned. It’s important to make small, incremental adjustments to avoid overshooting the correct timing. Once the timing mark aligns with the specified degree mark, tighten the distributor clamp bolt securely to hold the distributor in place. Double-check the timing one final time to confirm it hasn’t shifted during the tightening process.
During the verification process, pay attention to the engine’s idle speed, as it can affect the timing reading. Ensure the idle speed is within the manufacturer’s recommended range, typically around 800-900 RPM for a Golf 1. If the idle speed is too high or too low, adjust it using the idle speed screw on the carburetor before finalizing the timing setting. A stable idle speed ensures an accurate timing reading and optimal engine performance.
Finally, after confirming the timing marks are correctly aligned and the distributor is securely fastened, disconnect the timing light and test drive the vehicle. Listen for any unusual noises and observe how the engine responds under various driving conditions. Properly set ignition timing improves fuel efficiency, reduces emissions, and ensures smooth engine operation. If any issues persist, recheck the timing marks and distributor alignment to ensure everything is set according to the manufacturer’s specifications.
Golfed: Is It a Real Word?
You may want to see also
Explore related products
![A-Premium Engine Timing Chain Kit [fits OHV, 4Cyl 2.2L] Compatible with Buick Century & Chevy S10, Beretta, Cavalier, Corsica, LLV & GMC Sonoma & Isuzu Hombre & Olds Cutlass Ciera & Pontiac Sunfire](https://m.media-amazon.com/images/I/71URY5yqGFL._AC_UY218_.jpg)
Secure Distributor Clamp: Tighten clamp and recheck timing for accuracy
Once you’ve correctly aligned the timing marks and positioned the distributor to achieve the desired ignition timing, the next critical step is to secure the distributor clamp to ensure the timing remains accurate. Begin by gently tightening the distributor clamp bolt using a wrench or socket. Apply steady pressure, but avoid over-tightening, as excessive force can damage the distributor housing or warp the clamp. A firm, even torque is sufficient to hold the distributor securely in place. If your Golf 1 has a distributor that rotates within the clamp, ensure it doesn’t shift during this process, as even a slight movement can alter the timing.
After tightening the clamp, it’s essential to recheck the timing for accuracy. Loosen the clamp slightly if you need to make minor adjustments, but avoid completely removing it unless necessary. Restart the engine and use your timing light to verify that the timing mark on the pulley aligns precisely with the "0" or specified degree mark on the timing scale. If the timing has shifted, make small adjustments by rotating the distributor slightly and retightening the clamp. Repeat this process until the timing is correct.
When rechecking the timing, ensure the engine is idling smoothly and the timing light is positioned correctly. If the timing is off, even by a few degrees, it can negatively impact engine performance, fuel efficiency, and drivability. Take your time to fine-tune the distributor position, as precision is key to achieving optimal ignition timing. Once the timing is accurate, tighten the clamp securely again to prevent any further movement.
Finally, double-check the distributor clamp to ensure it is tight and secure. Give the distributor a gentle tug to confirm it doesn’t move. If everything is in place, turn off the engine and reconnect any components that were removed during the process, such as the air filter housing or battery cables. This step ensures that the distributor remains fixed in the correct position, maintaining accurate timing during normal driving conditions. Properly securing the clamp is the final safeguard to ensure your Golf 1’s ignition system operates reliably.
Mastering Outlaw Golf: The Ultimate Guide
You may want to see also
Frequently asked questions
You will need a timing light, a socket or wrench to loosen the distributor clamp, a screwdriver, and a tachometer (if not built into the timing light).
The correct timing specification varies depending on the engine type, but for most Golf 1 models with a 1.6L or 1.8L engine, it is typically between 6–8 degrees before top dead center (BTDC) at idle. Always refer to your vehicle’s manual for the exact specification.
Loosen the distributor clamp, connect the timing light to the spark plug wire, aim the light at the timing marks on the crankshaft pulley, and adjust the distributor until the mark aligns with the specified timing. Tighten the clamp and recheck the timing to ensure accuracy.
